Neuromancer

Desktop GUI for immunohistochemistry infarct analysis with preprocessing, interactive segmentation, ROI-assisted quantification, and CSV/image export.

PythonComputer VisionNeuroscienceWork Project

GitHub

Overview

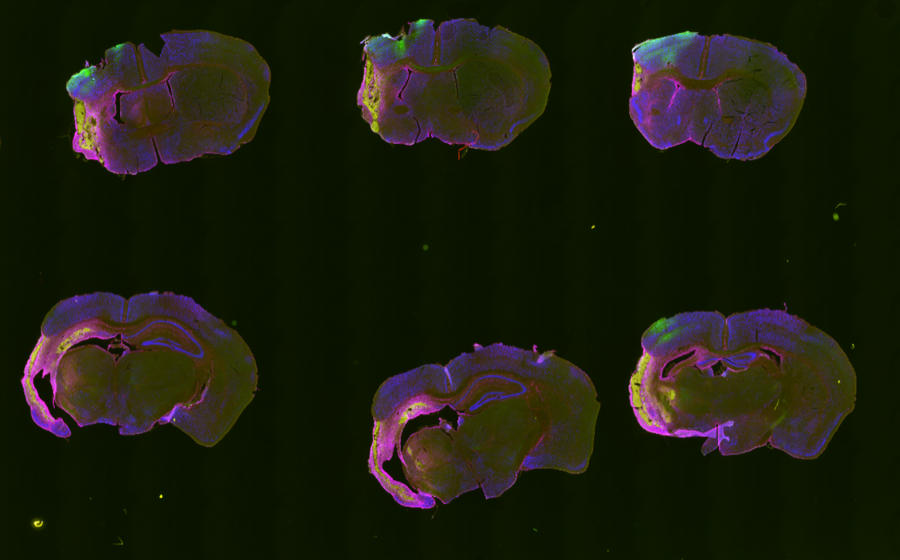

InfarQuant cropped starting slide for preprocessing setup

InfarQuant quantification snapshot of infarct detection

Preprocess whole-slide IHC images into section-level analysis inputs.
Apply interactive midline and contour-based segmentation per section.
Run ROI-assisted infarct quantification with threshold controls.
Export CSV metrics and result images for lesion burden analysis.

Segmentation Workflow

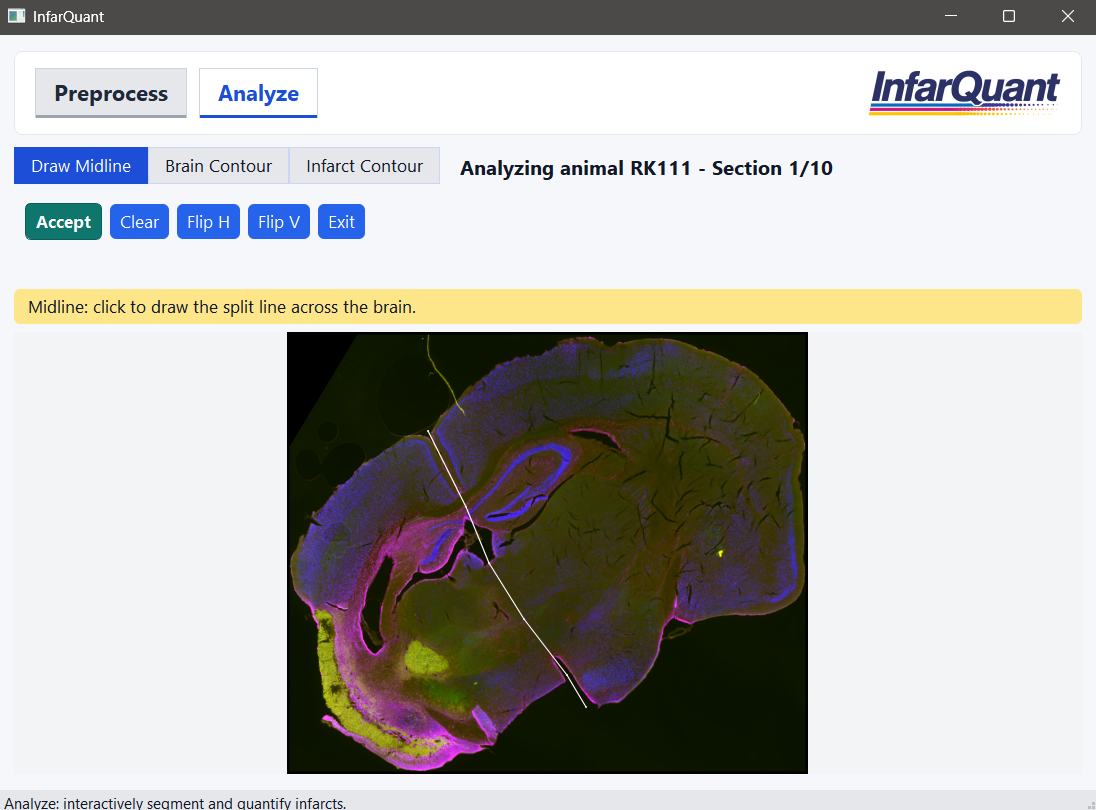

InfarQuant midline drawing interface — Draw Midline

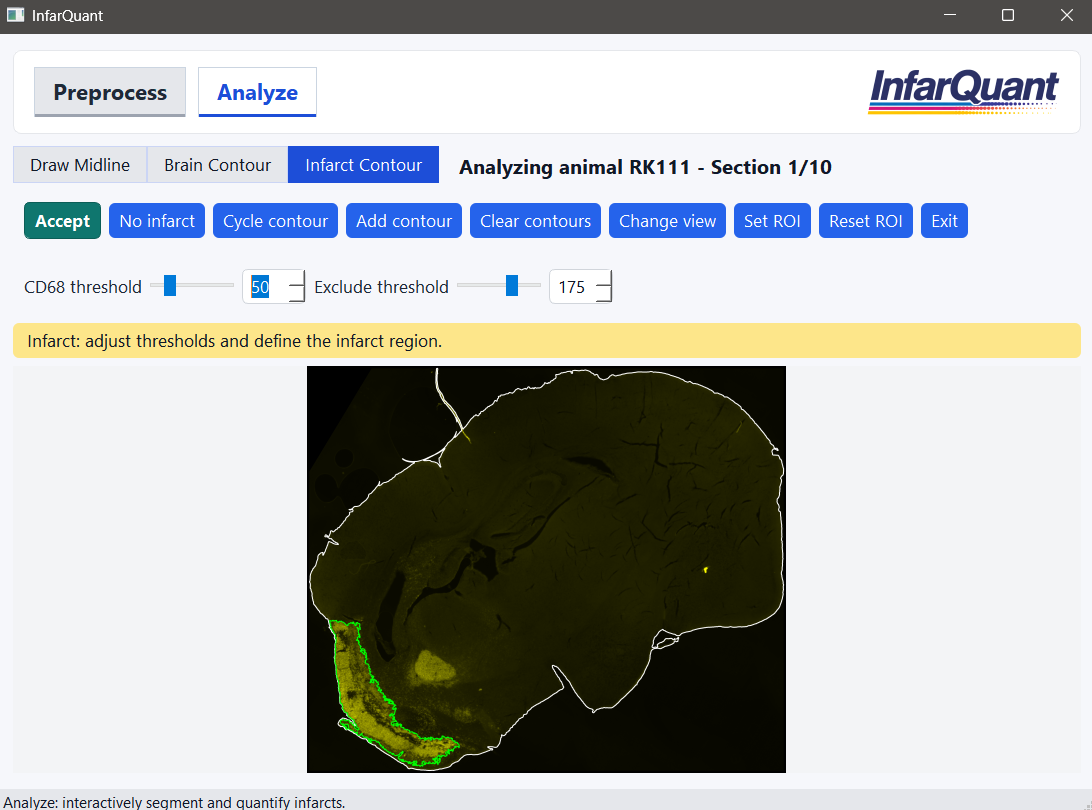

InfarQuant contour editing for infarct segmentation — Add / Refine Contours

Interactive controls define midline placement, brain contour thresholds, CD68 thresholds, and exclusion-channel thresholds for section-level infarct segmentation.

Outputs

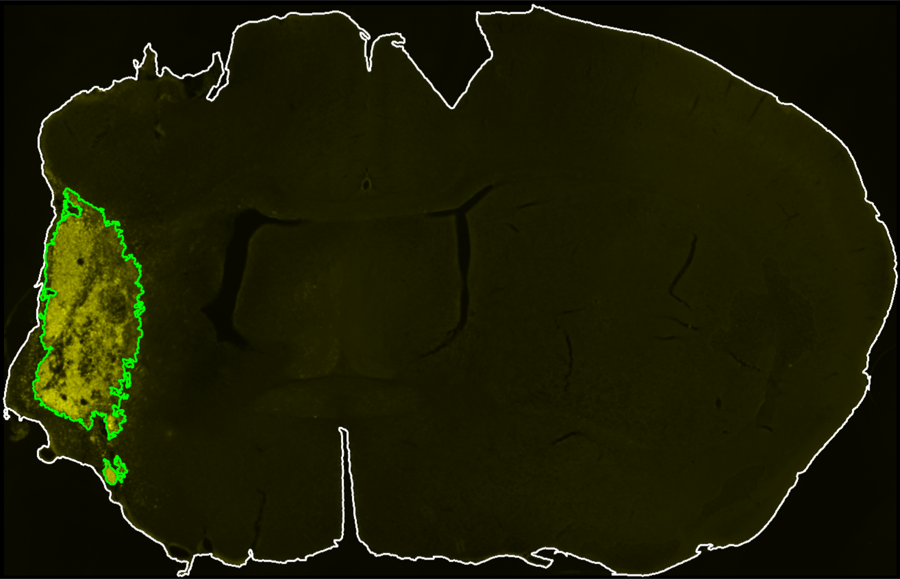

Final infarct segmentation output in InfarQuant — Final Infarct Output

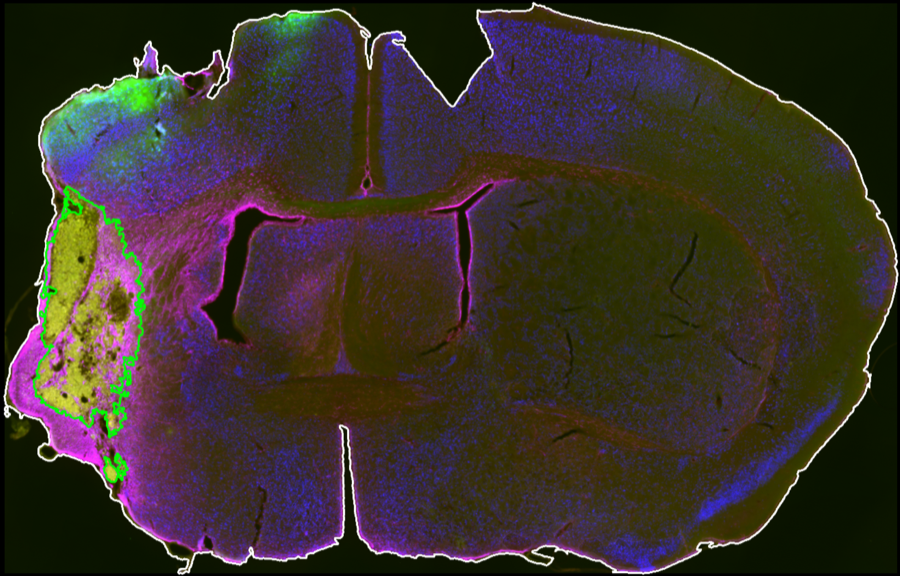

Final merged review output in InfarQuant — Final Merge Output

Analysis outputs include segmented infarct masks, merged review images, and CSV summaries saved per animal for quantitative comparison.
